The correct flow pattern in a fluid coupling is a continuous loop where the fluid travels from the impeller to the turbine and then back again. This movement is described as a toroidal vortex, consisting of two specific directional components:

In a steam turbine system, the condenser's primary role is to convert low-pressure exhaust steam back into liquid water (condensate)

The main bearing types that can be installed Face-to-Face, Back-to-Back, and Tandem (Back-to-Face) are Angular Contact Ball Bearings and Tapered Roller Bearings, used in matched pairs to handle combined loads and provide rigidity by creating preload, with Back-to-Back offering maximum stiffness and Face-to-Face allowing for more misalignment.

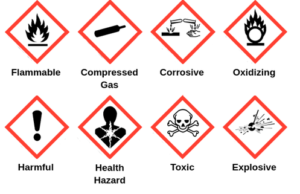

GHS stands for the Globally Harmonized System . A United Nations framework to standardize how hazardous chemicals are identified, classified, and communicated globally, using consistent pictograms, signal words, and data sheets to improve worker safety and environmental protection worldwide.

High-viscosity oil is primarily used for low-speed and heavy-load applications where a thick, strong protective film is necessary to keep moving parts separated.

The device that protects a motor by sensing the amount of current flow is an overload relay or, more broadly, an overcurrent protection device.

The most common shielding gas for TIG welding is Argon (Ar), an inert noble gas that provides excellent arc stability and protects the molten weld pool from atmospheric contamination like oxygen, ensuring clean, high-quality welds on metals like steel, stainless steel, aluminum, and titanium

TOXIC FUMES are dangerous to health. You need to have full protection. Use a FULL FACEPIECE MASK for better protection.

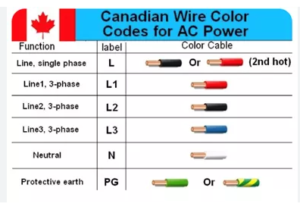

In North America, the grounding wire is typically a bare copper or green-insulated wire [1]. Its purpose is to provide a safe, low-resistance path for electricity to flow to the earth in the event of an internal fault or short circuit, which causes the circuit breaker or fuse to trip, cutting power to the motor .

To achieve both high pressure and high flow, the most effective options are specialized high-head centrifugal pumps and multistage centrifugal pumps.

AC motors (Alternating Current motors) are often called induction motors, especially the most common types, because they generate rotor current via electromagnetic induction from the stator's magnetic field, without direct electrical connection to the rotor, hence also known as asynchronous motors.

For continuous heavy-duty applications, rotary screw air compressors generally offer the highest efficiency for most industrial flow ranges. They are specifically designed for a 100% duty cycle and provide a steady, energy-efficient airflow.

Metal-to-metal contact during a large turbine start-up is prevented primarily through the use of a jacking oil system ( Jacking Pump ). This system ensures a protective film of oil is present in the bearings when the turbine speed is too low for normal hydrodynamic lubrication to occur.

Vibration in a pump is most likely caused by misalignment between the pump and motor shafts or piping, unbalance in the rotating components (like the impeller), or cavitation due to fluid issues.

Extreme Pressure (EP) oil is specifically used for high-pressure (heavy) loads and low-speed conditions where traditional lubrication fails.

1. 1. Calculate TIR: Subtract the top reading from the bottom (



      0.005−(-0.005)=0.0100.005 minus open paren negative 0.005 close paren equals 0.010

      0.005−(−0.005)=0.010

      ).

   2. Determine Offset: Divide TIR by 2 to get



      0.005"0.005 "

      0.005"

      .

   3. Place Shims: Because the bottom reading is more positive than the top, the motor is low. Add 0.005" shims to the motor feet.
   4. Verify: Re-check the readings after tightening the bolts to ensure they are within the tolerance range, typically ±0.002" (0.05 mm).

The most common programming language used for PLCs is Ladder Logic (LD), also known as the Ladder Diagram. This is largely due to its graphical nature and historical resemblance to electrical relay logic diagrams, making it easy for electricians and maintenance personnel to understand and troubleshoot.

Curve tooth and soft Tooth is for wood and an extra-fine tooth is not necessary.

So the answer is Regular Tooth Blade 6-10 TPI -

• Maintain Contact: The most critical rule is to always have a minimum of three teeth (and ideally between 6 and 12) engaged in the material to prevent damage and ensure stability.

Tungsten (Wolfram) has the highest tensile strength and extreme hardness among pure metals, maintaining its strength at high temperatures,

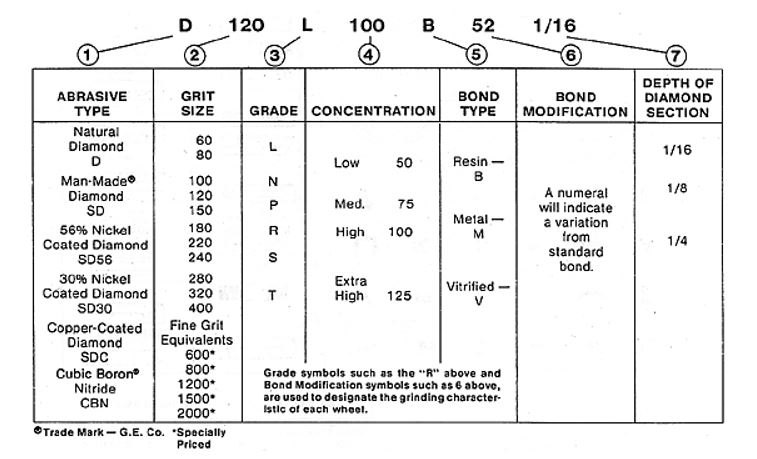

To sharpen a carbide drill, you should use a Diamond grinding wheel for the best results, though a Green Silicon Carbide wheel is a common, more affordable alternative.

Since Diamond grinding wheel is not in the multiple choice . Silicon carbide is the best answer.

In friction bearings (also known as plain or journal bearings), oil grooves are located in the low-pressure or unloaded area of the bearing. This design choice is critical for maintaining an effective lubrication film and ensuring bearing longevity.

For applications involving heavy radial and axial (combined) loads, the most common and effective bearing types are tapered roller bearings.

• Neutral Position: At a 0° angle, the pistons do not reciprocate (move back and forth) even as the shaft rotates. The pump is "on" but delivers no fluid, resulting in zero displacement.
• Increasing the Angle: Moving the swash plate away from center forces the pistons to travel a longer stroke. This increases the volume of fluid moved per revolution, directly increasing the pump's output flow.

• Zinc: Applied as a "sacrificial" coating (galvanization), zinc oxidizes instead of the steel. Even if the coating is scratched, the zinc continues to protect the steel through cathodic protection.
• Chromium: In stainless steel or through chrome plating, chromium forms a thin, transparent layer of chromium oxide that is highly resistant to further oxidation.

The device used to test field coil insulation is called a megohmmeter, often referred to by the brand name Megger.

A JIC flared joint of a hydraulic tube has a flare angle of 37 degrees. Both the male and female components of the fitting have matching 37-degree seats, which form a metal-to-metal seal when connected.

The governor system, through its control of the governor valve, regulates the flow rate of steam entering the turbine to maintain the desired rotational speed (RPM) in response to changing load conditions.

Materials: Excellent for general-purpose use on steel, hardened steel alloys, wood (both hard and soft), and composites

Silicon Carbide

Materials: Ideal for very hard materials like glass, ceramics, stone, cemented carbide, and non-ferrous metals (e.g., aluminum).

In an industrial air compressor, the component responsible for the actual compression of air is known as the compression element or pump.

Digital Infrared  Temerature Scanner is a non-contact device that measures surface temperatures by detecting infrared energy, providing instant readings via an LCD screen, often with a laser pointer for accuracy, and used widely in medical screening (forehead), cooking, automotive, and industrial settings, though they typically measure surface temps and require careful use for human body heat to avoid inaccuracies, as noted by Cleveland Clinic Health Essentials.

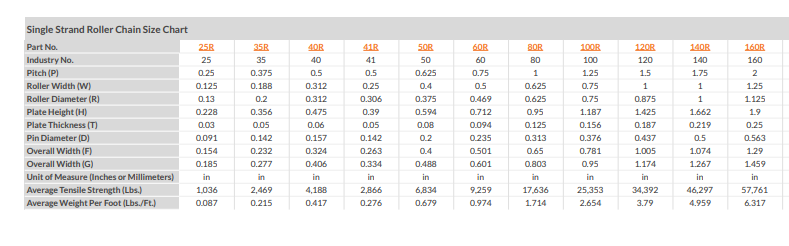

The pitch length of a #60 ANSI roller chain is 3/4 inch (0.750 inches or 19.05mm), representing the distance between the centers of consecutive rollers.

The sequence follows the number. So the answer is C. 1-6-10-5-9-4-2-7-3-8

The valve that specifically prevents the turbine speed from running away during an emergency is the overspeed trip valve (often referred to as the emergency stop valve or ESV) [1, 2, 3].

The term used to describe an exaggerated vibration amplitude is called resonance.

• Hardening: Rapid quenching (in water or oil) prevents atoms from returning to a stable, soft state. Instead, they become "trapped," transforming the structure into martensite, which is extremely hard and strong.

• Grooves with Sharp Edges: Oil grooves should have a small bevel around the lip. A sharp, unchamfered edge can act as a scraper, removing the oil film from the journal surface rather than allowing the oil to roll into the bearing area.

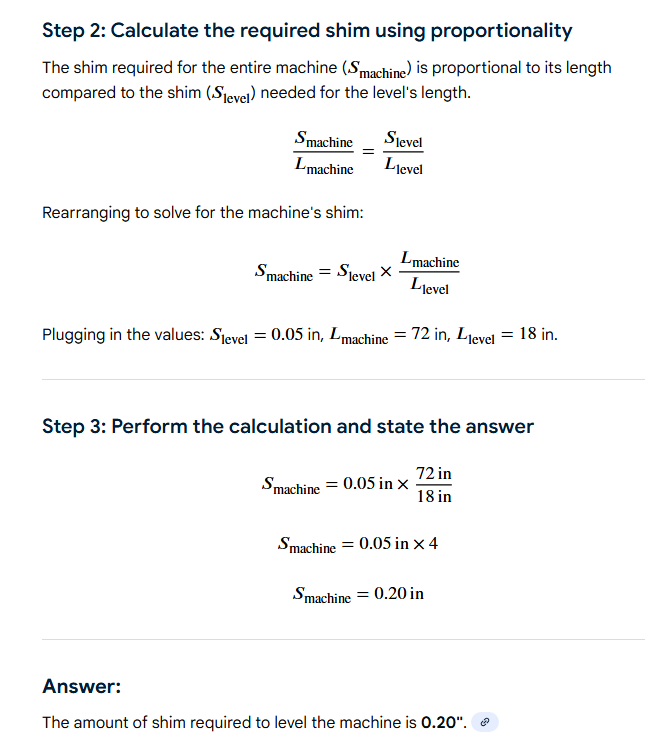

First we have to convert 6 feet to inches = 72 inches then .

According Canadian Centre for Occupational Health and Safety

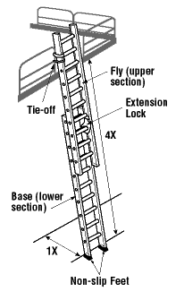

For access to an elevated work surface, erect ladders so that a minimum of 1 m (3 ft) extends above a landing platform. Tie the top at support points.

Shear pins are sacrificial fasteners, often in snowblowers or PTO shafts, designed to break under extreme force to protect expensive components like gears or engines from damage when the machine hits ice, rocks, or other obstructions, acting as a "mechanical fuse" by snapping to release the jammed part, allowing the rest of the machinery to keep spinning freely until replaced. They are intentionally made weaker than the parts they protect, preventing costly repairs to gearboxes or shafts.

The two most common types of shaft seals used in industrial turbines (both steam and gas) are labyrinth seals and carbon ring seals.

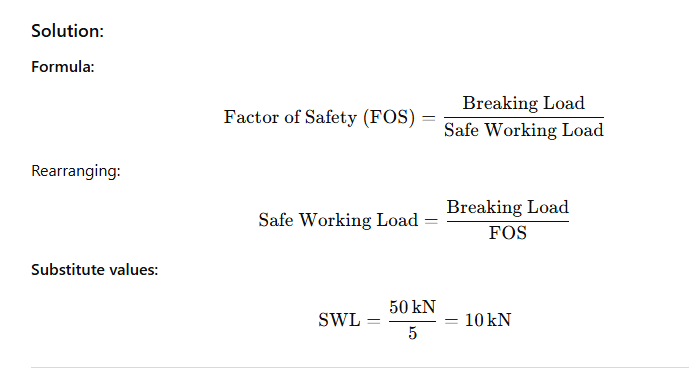

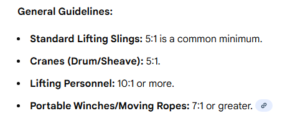

The minimum acceptable Factor of Safety (FoS) for wire rope is typically 5:1 (five times the working load) for general lifting.

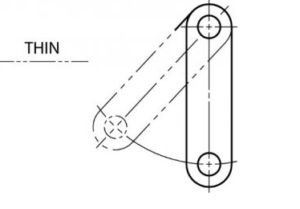

Phantom Line

Phantom lines are long-short-short-long lines most often used to show the travel or movement of an object or a part in alternate positions. It can also be used to show adjacent objects or features.

Centipoise (symbol: cP) is the most common unit of measurement for absolute/dynamic viscosity, which describes a fluid's internal resistance to flow. It is part of the CGS (centimeter-gram-second) system and is named after the French physicist Jean Léonard Marie Poiseuille.

Centistoke (symbol: cSt) is the standard unit of kinematic viscosity, which measures a fluid's resistance to flow under the influence of gravity. It is a sub-unit of the "Stokes," named after the Irish physicist Sir George Gabriel Stokes.

kinematic refers to the study of motion without considering the forces that cause it

Fracture Index (FI) is a validated clinical tool used to predict the risk of bone fractures in individuals, particularly postmenopausal women over age 65

The direction of a double-acting hydraulic cylinder is best and most commonly controlled by a four-way, three-position (4/3) directional control valve.

82° (Imperial/US Standard): This is the standard angle for imperial fasteners (e.g., Unified Thread Standard screws) commonly used in North America.

90° (Metric/ISO Standard): This is the global standard for metric fasteners and is widely used across Europe and Asia.

In large power plants, the reaction turbine is the most commonly used type due to its superior efficiency in handling high steam flow rates. Unlike impulse turbines, which extract energy from high-velocity steam jets, reaction turbines use a continuous expansion process that results in higher peak efficiencies, often ranging from 80% to 95%.

 I-beam (or H-beam, W-beam) is a fundamental type of structural steel member, shaped like an "I" to efficiently handle heavy loads, resisting bending and shear forces, making it crucial for buildings, bridges, and other construction projects.

• SWL (in tons) = Diameter (in inches) × Diameter (in inches) × 8.
• 1/2 inch (0.5") diameter wire rope, the SWL is approximately 0.5 × 0.5 × 8 = 2 tons (4,000 lbs).

The resistance of an electric circuit is measured in ohms.

The turnbuckle on a shaft-mounted reducer (SMSR) is used with the torque arm to adjust V-belt tension quickly and easily, eliminating the need for external belt take-ups and allowing fine-tuning of belt slack for optimal performance and longevity of the conveyor system.

hydraulic piping and tubing selection is fundamentally based on Internal Diameter (ID), Outer Diameter (OD), and wall thickness, as these dimensions directly determine the system's performance and safety.

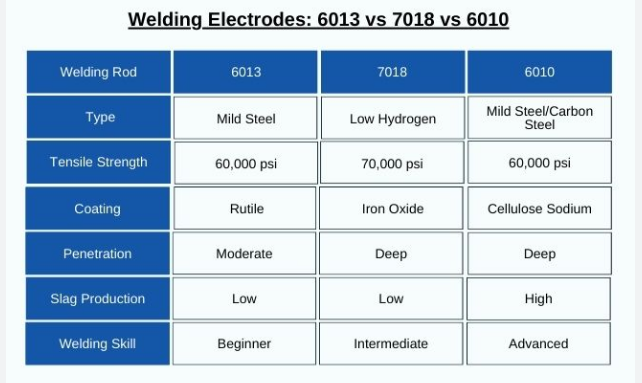

Base on the chart E7018 has the highest Tensile strenght - 70 x 10000 = 70,000 psi

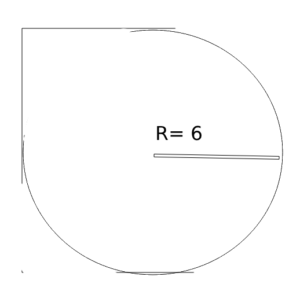

To calculate the area.

Fisrt - calculate the circle area - A= 3.1416 x R x R = A= 3.1416 x 6x6  = 3.1416x36 = 113.0976

The corner is 1/4 of a square :   Area of square is 12x12=144  = 144-113.0976 =30.9024 /4 =7.7256

so 113.0976 + 7.7256 = 120.82

In a hydraulic system, the pressure relief valve (PRV) is considered the primary safety valve.

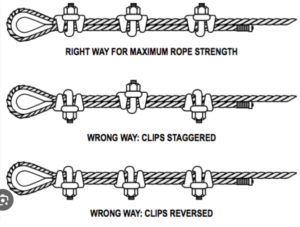

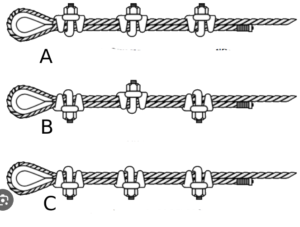

• The Golden Rule: "Never saddle a dead horse."
  • The Saddle: Must always be placed on the live end (the long, load-bearing side).
  • The U-Bolt: Must always be placed on the dead end (the short, turned-back tail).
  •

Moisture is a major cause of damage in the low-pressure sections of steam turbines, but it is not the sole or majority cause of all damage across the entire turbine. Damage is a result of a combination of factors, including material stress, contamination, and operational issues.

OSHA, the Occupational Safety and Health Administration, is a U.S. federal agency under the Labor Department, responsible for ensuring safe and healthy workplaces by setting and enforcing standards, and providing training, outreach, and assistance to prevent work-related injuries and illnesses.

• Standard Rule: A typical allowance of 0.001" to 0.003" (0.025 mm to 0.076 mm) on the diameter is standard for hand reaming.

The angle of the lip (point/cutting edge) on a drill bit primarily determines the aggressiveness of the cut, penetration ease, chip formation, and suitability for specific materials, with sharper angles (smaller point angle like 90°) for softer materials and wider angles (like 130-140°) for harder materials to prevent wandering and manage heat/chip flow, all while balancing cutting efficiency and bit durability.

• Electricity Generation: The rotating turbine shaft is typically coupled to an electrical generator. As the shaft spins, it drives the generator to produce electricity through electromagnetic induction. They are the central components of coal, nuclear, geothermal, and solar thermal power stations.

The most likely causes for a machine that recently started vibrating during operation are imbalance, misalignment, mechanical looseness, and component wear. These four issues account for the majority of machine vibration problems.

A WET (oil-injected or liquid-injected) screw compressor significantly reduces the heat generated during operation. The injected liquid acts as a coolant, effectively managing the heat of compression.

On a pneumatic dust conveyor, the elbows (bends/curves) in the pipeline are almost always the areas that wear out first.

The part within a centrifugal pump's stuffing box that distributes the seal liquid (flush water) evenly around the shaft is the lantern ring, also known as a seal cage.

The orthographic projection (also known as multi-view projection) is the most common and fundamental projection used in technical drawing. This method creates multiple two-dimensional views of a three-dimensional object, which allows for precise measurements and an unambiguous representation of the object's true size and shape.

1. Brine (Salt Water): The most severe and rapid quenching medium. For maximum possible cooling, some professionals use iced brine.
2. Fresh Water: Faster than oil and air, but slower than brine. It is often used for "W-series" water-hardening tool steels.
3. Specialized Quenching Oils: Specifically formulated "fast oils" (like Parks 50) are designed to mimic water's early cooling speeds while slowing down at lower temperatures to prevent cracking.
4. Oil (General): Slower than water; typically used for "O-series" oil-hardening tool steels to reduce distortion.
5. Air/Gas: The slowest method, used for "A-series" or high-alloy tool steels that harden through simple exposure to still or pressurized air.

The reason you should never open an energized shunt-field circuit is that doing so causes the magnetic field to collapse rapidly, inducing an extremely high voltage (inductive kick) across the opening contacts or switch

The viscosity index (VI) is the primary property of lubricating oil that helps it maintain a stable thickness (viscosity) across a range of temperatures

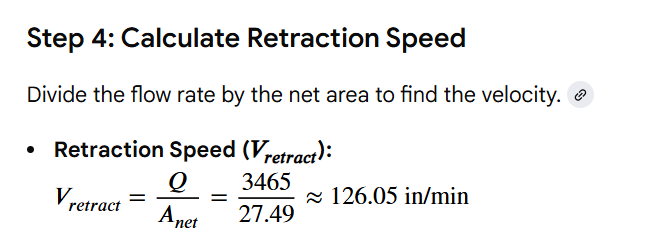

In a standard double-acting cylinder, the rod will retract faster than it extends even with a constant flow rate. This is because the rod occupies space on the retraction side, meaning there is less volume to fill to move the same distance.

add.500+.075+.007=.582

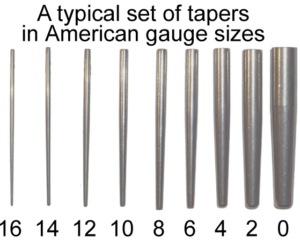

Taper pins are used to precisely position, align, and secure mechanical parts like gears, pulleys, and shafts, offering strong frictional holding power and repeatable accuracy for disassembly/reassembly, common in machinery for linking components where exact location matters.

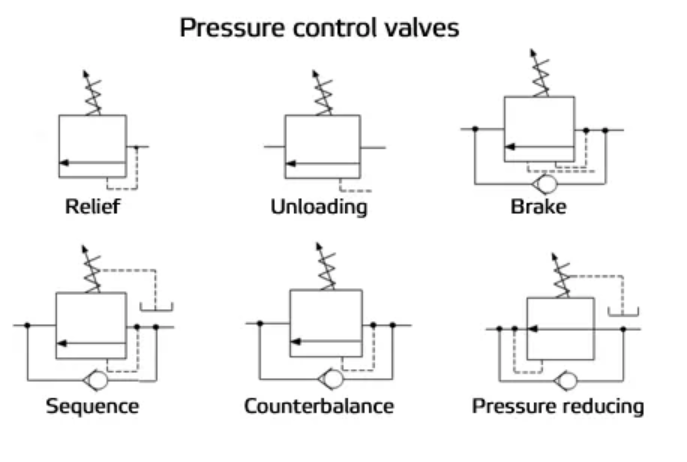

The Sequence Valve is a normally closed hydraulic valve that typically requires an external drain to prevent pressure buildup in its spring chamber, ensuring accurate operation by returning leaked oil directly to the tank, unlike internally drained valves where leakage affects the pressure setting.

In a pneumatic or air-powered system, the pressure regulator is the primary component responsible for providing constant and stable air pressure to a machine or tool.

Adjusting the bearing and shaft clearance on a steam turbine involves precise measurement of "crush" or radial clearance, typically utilizing shims and compressible gauging materials.

Using Shims (Split-Line Shims): Shims of equal thickness (Ts) are placed on both sides of the horizontal split lines.

The maximum recommended temperature for heating a standard bearing for shaft installation is 120°C (250°F). Exceeding this limit can cause permanent metallurgical changes in the steel, potentially altering its hardness and dimensional stability

The hardness of a file, or any material, is most accurately measured using standardized indentation hardness tests such as the Rockwell, Vickers, or Brinell scales, with the Rockwell C scale (HRC) being a common method for hard steels used in tools.

• 24V DC: This is the de facto standard for most modern industrial automation control systems, sensors, and many actuators. Its popularity is due to a balance of safety, noise immunity, and compatibility with a wide range of components.

In an oxy-acetylene system, flashback arrestors should ideally be installed at both the regulator outlets (near the cylinders) and the torch inlets (near the torch handle) for maximum protection, with the torch end offering the best defense against flashbacks reaching hoses.

A flyball governor primarily utilizes centrifugal force to move its control valve.

In an ideal block and pulley system (also known as a block and tackle) with a 5:1 mechanical advantage, the force required to lift a load is reduced by a factor of five (or 1/5 of the weight).

since we have 5 pulleys we can devide the total weight 250  by 5 . So the answer is  50 .

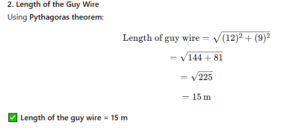

We know that the triangle is a right angle, so we solve for Hypothenos side .

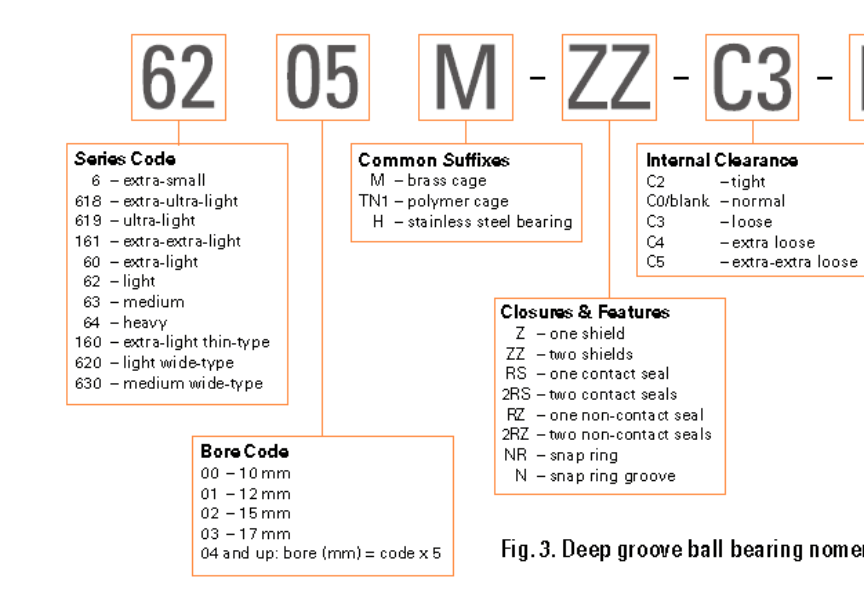

This size can be determined using the standard bearing designation system, where the last two digits of the bearing number (12 in this case) are multiplied by 5 to get the bore diameter in millimeters (12 x 5 = 60 mm).

Pour point is the lowest temperature at which a lubricating oil can still flow (pour) under specified test conditions.

For cutting a 1/2" (half-inch) thick stainless steel plate, the most effective tools are high-powered options such as a plasma cutter, waterjet cutter, or a circular saw with a specialized carbide-tipped blade

OSHA standards (specifically 29 CFR 1910.133 for general industry and 29 CFR 1926.102 for construction) mandate eye protection when workers are exposed to various hazards

WCB regulations (specifically section 8.14 of the BC Regulation) mandate that a worker must wear eye protection in any work area where one or more eye hazards exist due to conditions or activities.

according to the HSE (Health and Safety Executive), safety glasses are a must (part of personal protective equipment, or PPE) when a workplace risk assessment indicates a hazard to the eyes that cannot be eliminated by other means. This applies to a wide range of situations and industries.

• Vapor Lock: The pump may reach a point where the impeller is entirely surrounded by vapor. Because centrifugal pumps are generally not designed to pump gases, the "prime" is lost and discharge flow may stop completely.

• Shear Stress: Forces acting parallel to each other in opposite directions, causing internal layers of the metal to slide past one another.
• Fatigue Stress: Caused by repeated or cyclic loading and unloading, which can lead to structural failure even at stress levels below the metal's yield strength.
• Tensile Stress: A "pulling" force that tries to stretch or elongate the metal.
• Bending Stress: A combination of tensile and compressive stresses occurring when a force is applied perpendicular to the length of an object.

 Two 45-degree left-hand helical gears can mesh to connect non-intersecting shafts at a 90-degree angle. This configuration is known as a crossed helical gear set or screw gears.

The nominal size of a standard wooden scaffold plank in North America is 2 inches by 10 inches (2" x 10").

Before welding cast iron, the essential processes that must be performed are thorough Identifying the alloy, cleaning of the surface, adequate joint preparation, and uniform preheating of the part. These steps help manage the material's brittleness and high carbon content, preventing cracks and ensuring a strong weld.

• Return Line: This is the most common location for filters. They are installed just before the fluid returns to the reservoir. Their job is to remove contaminants generated by the system's operation before the oil enters the tank for recirculation.

MSDS stands for Material Safety Data Sheet, a document providing crucial info on chemical hazards, safe handling, storage, and emergency steps; however, it's now mostly updated to the globally standardized SDS (Safety Data Sheet) under the GHS system, offering the same hazard details but in a strict 16-section format for workplace safety.

• Tool Breakage: If the automatic feed rate is set too high for the low RPM, the drill bit may remove too much material per revolution, leading to high thrust forces that can stall the motor or break the bit.
